At the (Art)ScienceBLR lab, we tried to print our own biodesign incubator PCB using the laser cutter to etch.

Photo-resist PCB paints and boards are not that easily available here in Bangalore. To make custom PCBs in small numbers we have tried using the clothes iron to transfer toner from glossy print outs to the copper. It becomes a cumbersome process and it’s also difficult to print out finer tracks.



We followed the following process-

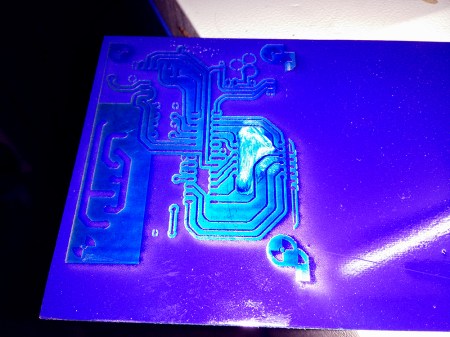

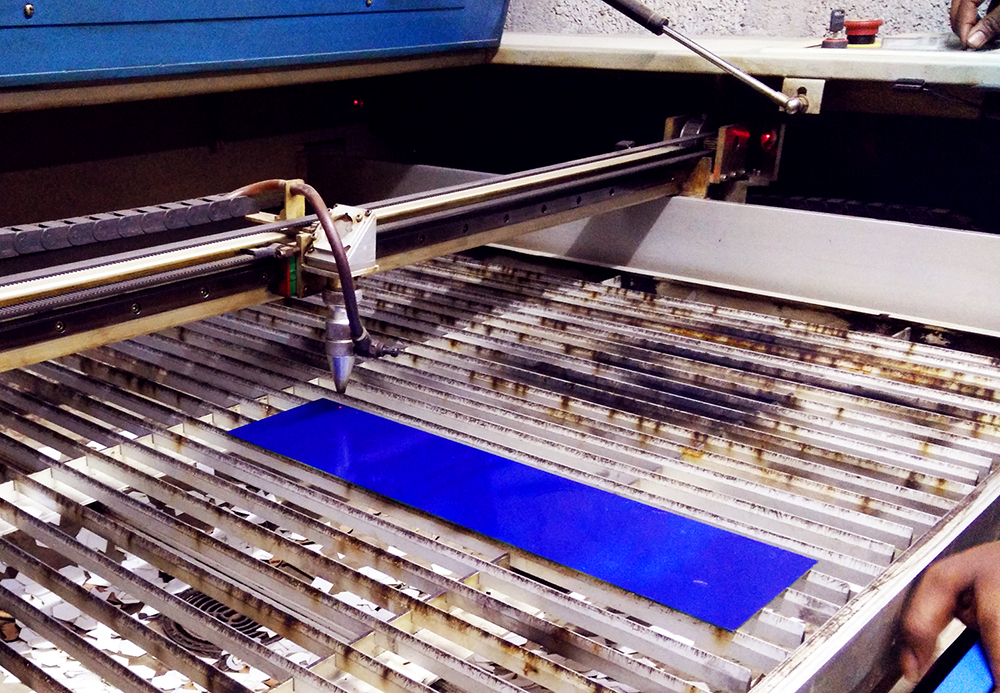

1.Spray paint the copper surface of the PCB. It is better to use acrylic spray paint but enamel spray paint will also do. In the file to be sent to the laser cutter for etching, the part to be etched is black and the tracks to keep is white (Opposite of the iron on PCB pattern)

IMG_20150820_171857

IMG_20150820_173034

IMG_20150820_173327

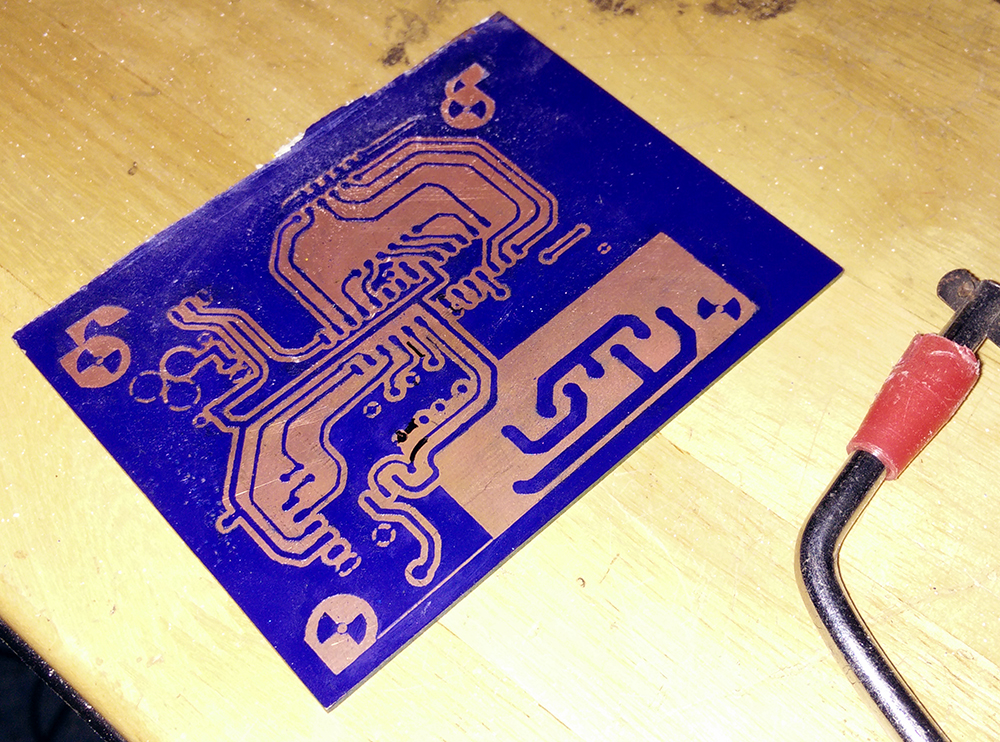

2. The spray paint over the copper to be etched can be easily cleaned with IsoPropyl alcohol.

IMG_20150820_191554 IMG_20150820_194649

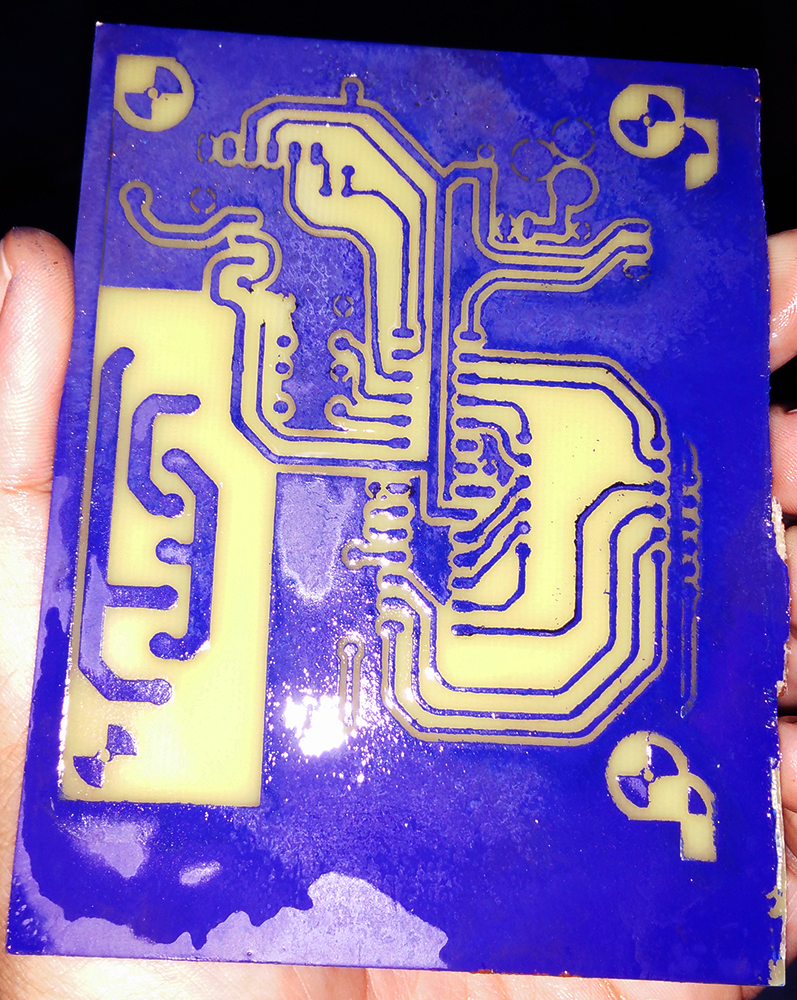

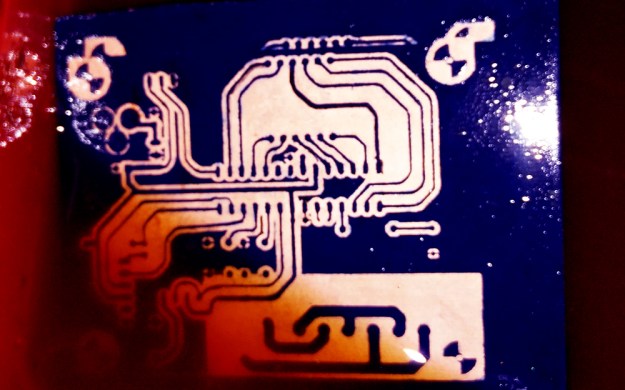

3. The board can now be put into ferric chloride to etch away the copper.

IMG_20150820_195530 IMG_20150820_211853

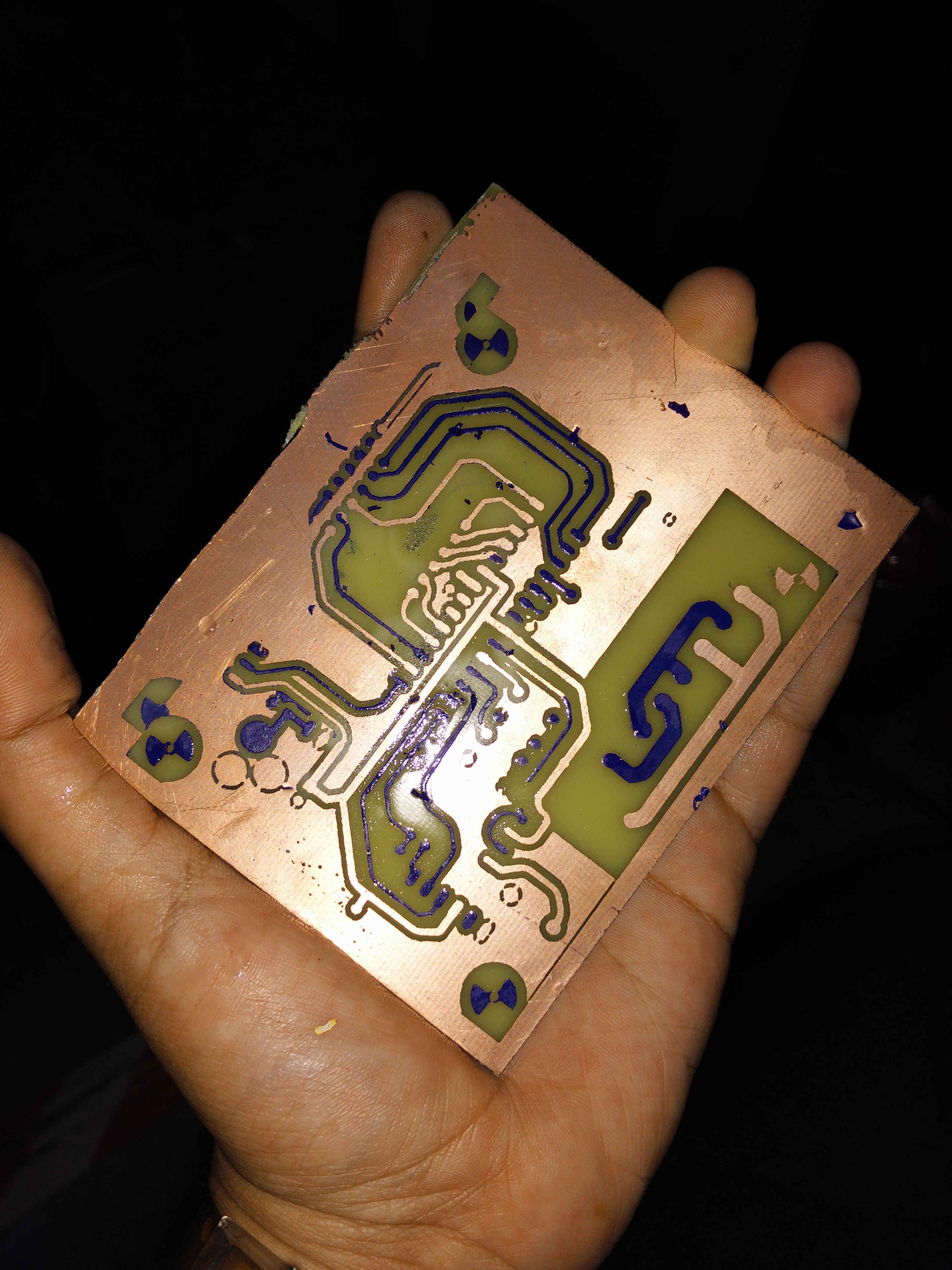

4. The remaining paint comes off in a layer when lightly rubbed with IPA.

IMG_20150820_212522

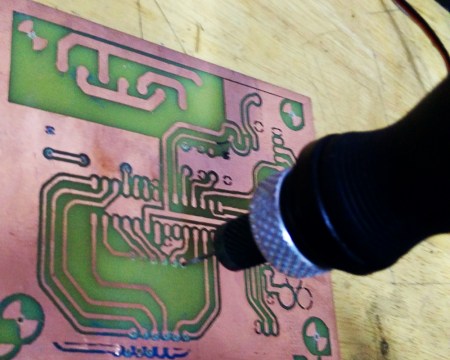

5. After cleaning and drilling the holes for the components, the board is ready for soldering.

IMG_20150820_215036

The laser cut PCB was faster to make than iron on method. Using the spray paint saves a lot of time! The scrubbing and cleaning of the copper side needed while preparing the board before the toner transfer can be skipped. Also, the tracks came out much neater!
